Automotive Seats

MOBILITY SCOOTER SEAT

ZY169

Request a Quote

AI is in maintenance. Contact our team for this product.

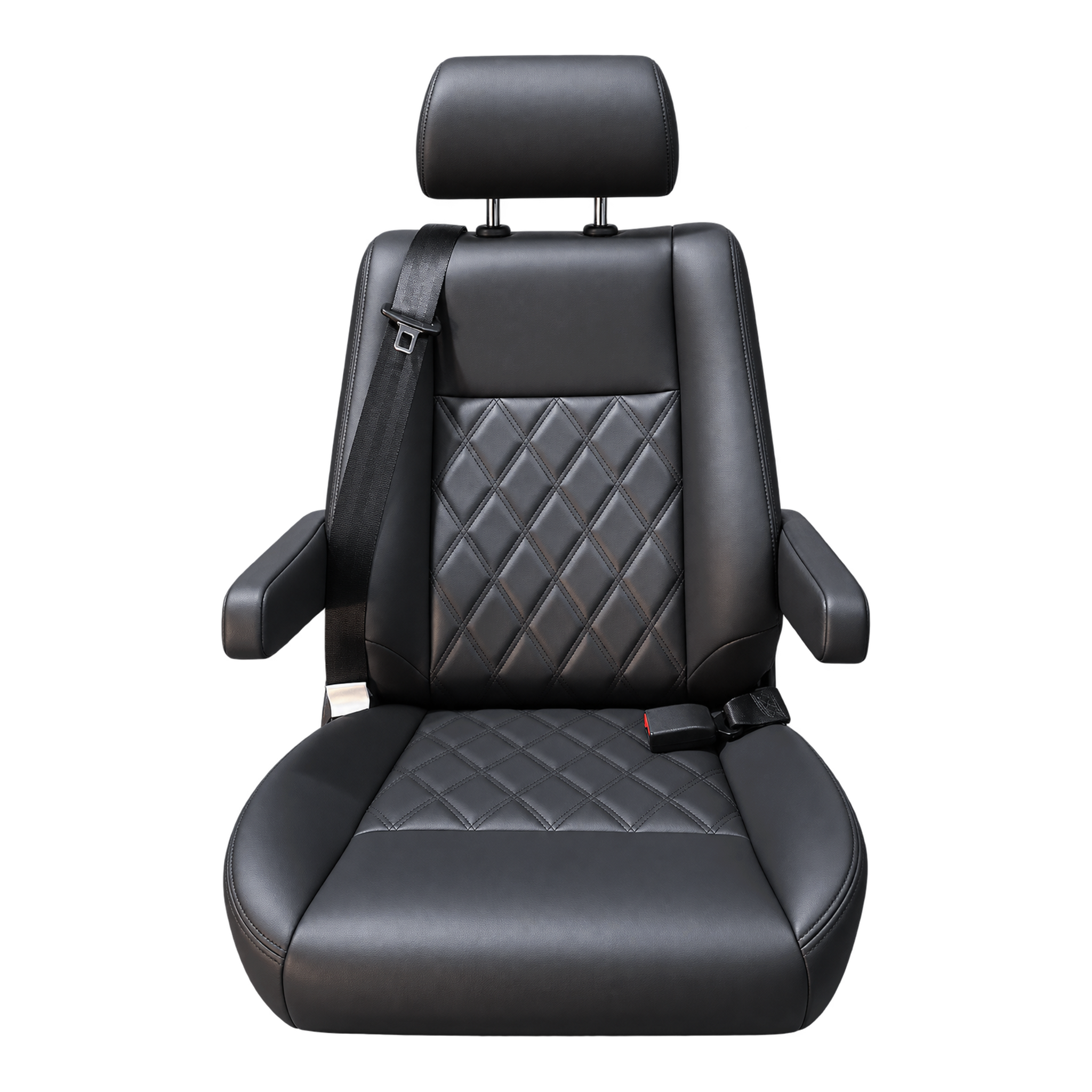

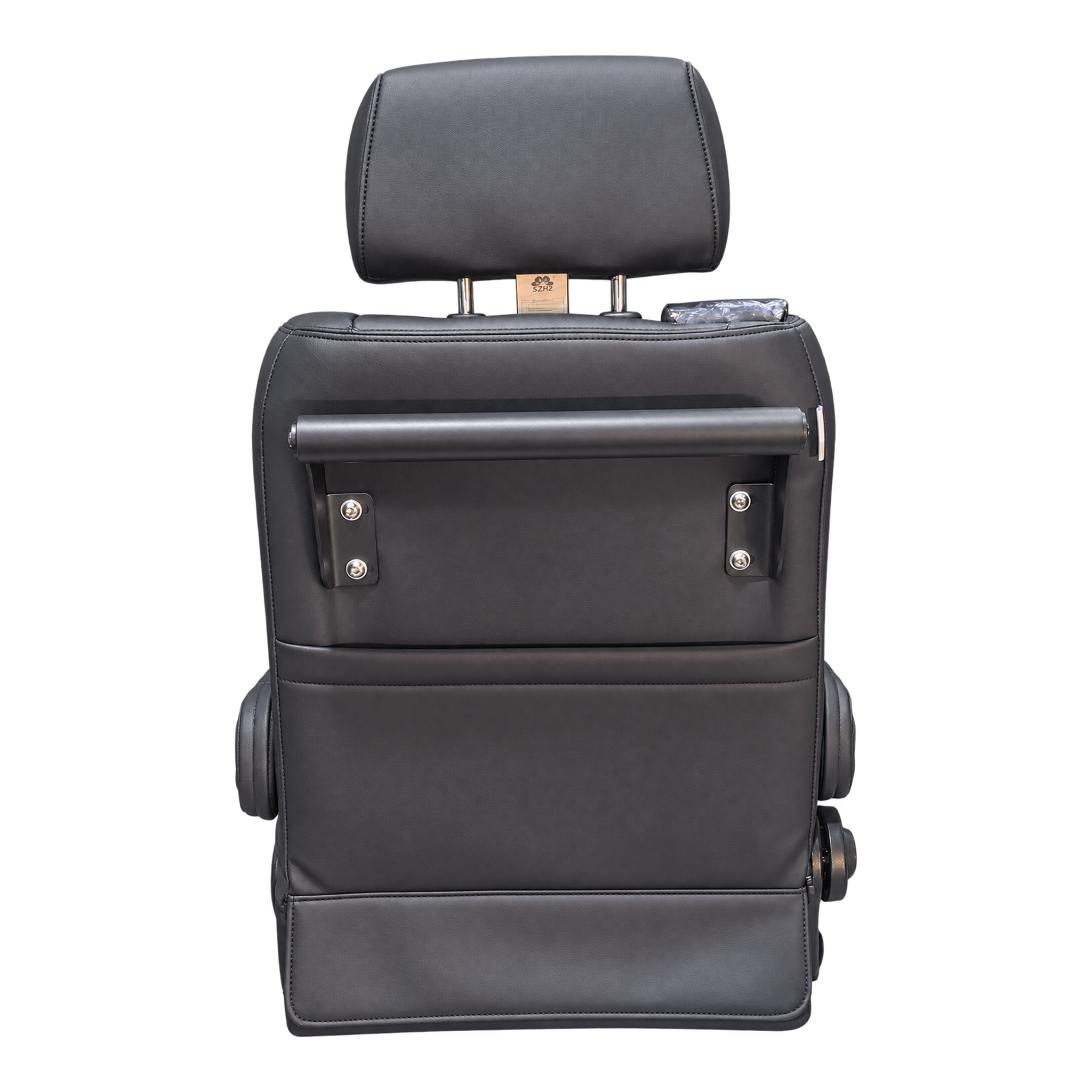

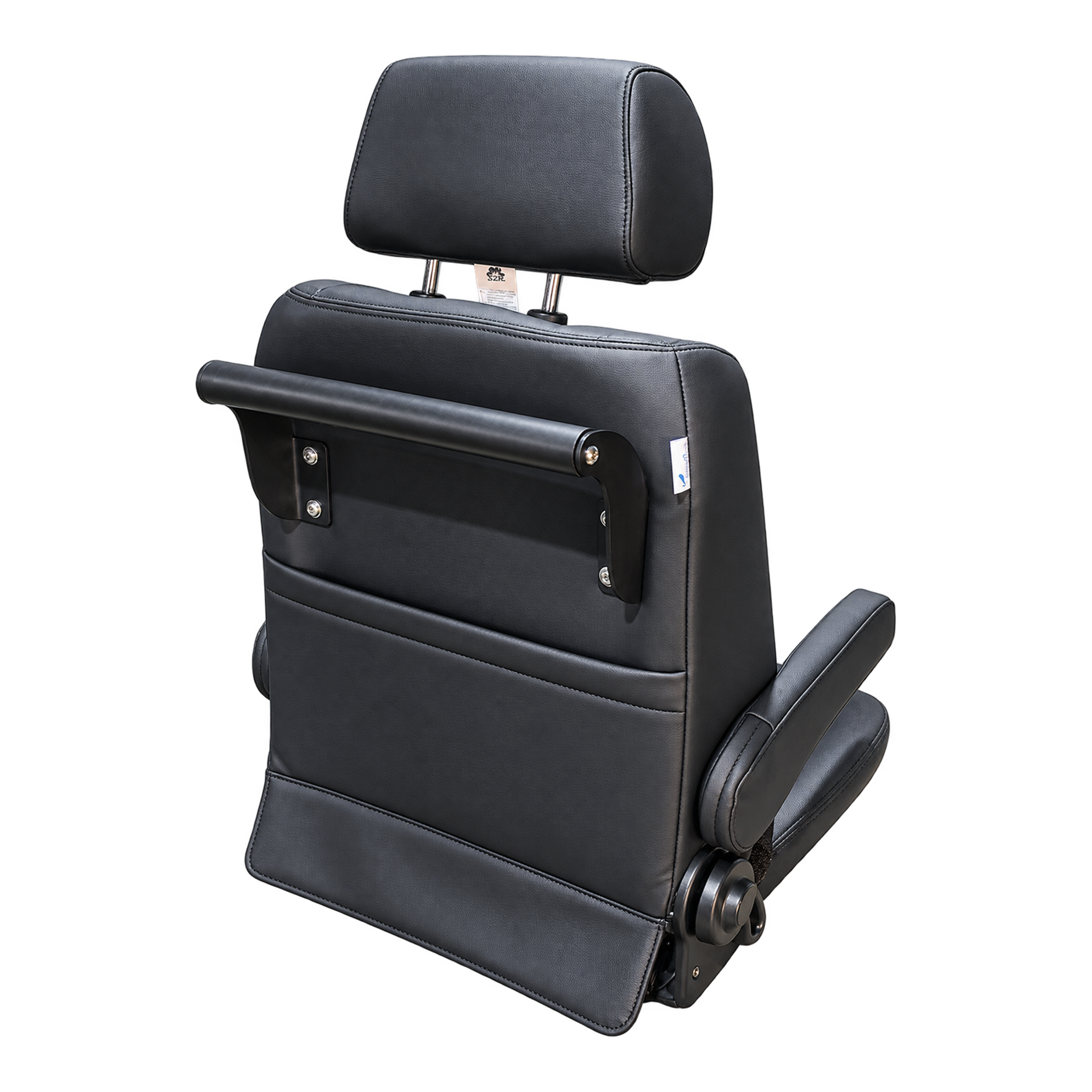

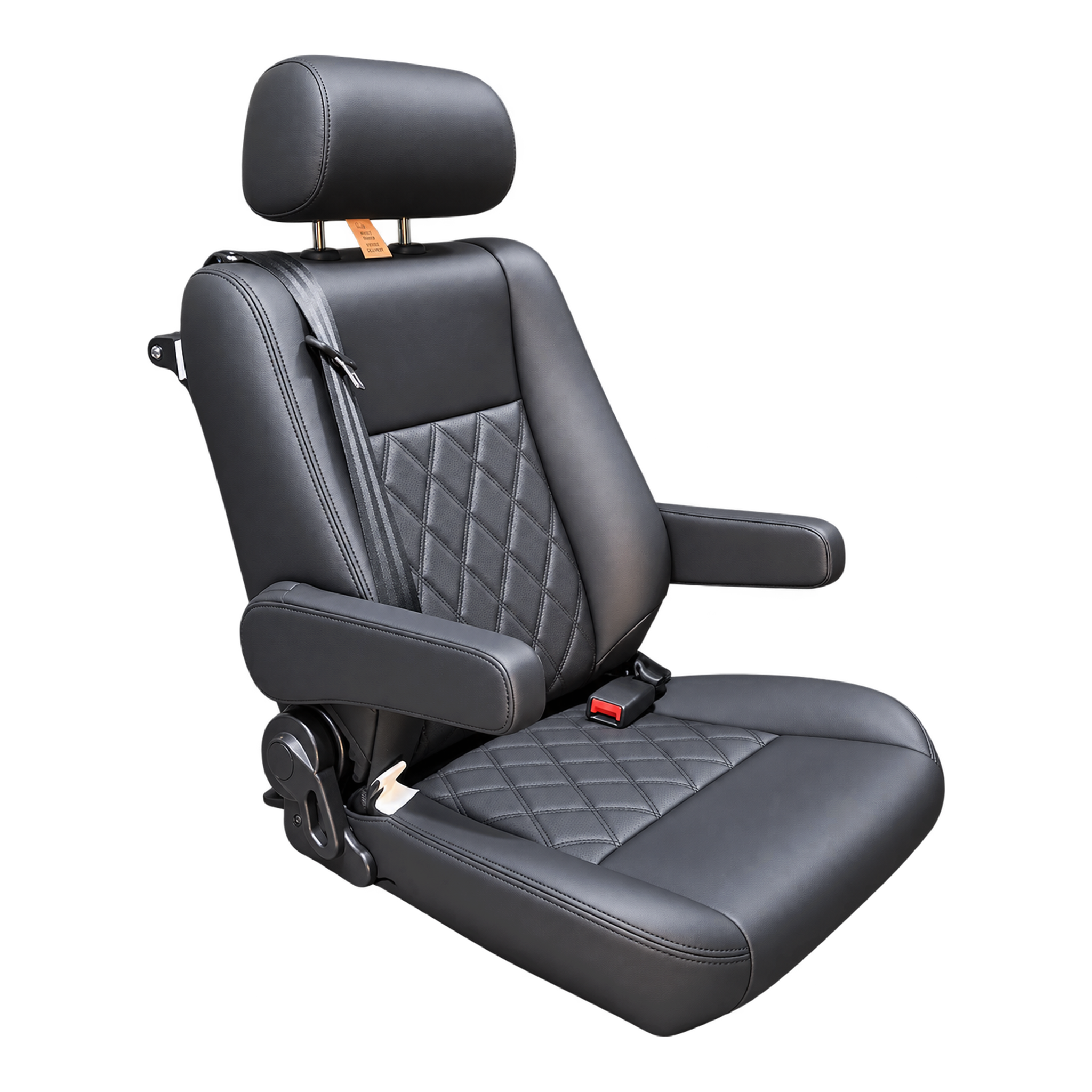

MOBILITY SCOOTER SEAT ZY169 - image 1

Product Function

MOBILITY SCOOTER SEAT,HANDICAP VAN SEAT,ACCESSIBLE VEHICLE SEAT,WHEELCHAIR SEAT

ZY169 is a mobility scooter seat with 35 mm wide armrests on both sides, 220 mm forward and backward adjustment, a reclining backrest, and a three-point seatbelt.

Applications

  1. Mobility scooter
  2. Handicap van
  3. Accessible vehicle
  4. Wheelchair

Compatibility

  1. For mobility scooter, handicap van, accessible vehicle, and wheelchair seating applications, mounting compatibility is evaluated against each customer’s product. Please email us to request the ZY169 STP and DXF files and verify the installation dimensions before ordering.

Differentiators

  1. With existing ZY169 molds, we can respond faster and offer lower upfront tooling costs than competitors that need to develop new molds for comparable projects.
  2. We support flexible small-batch customization and can accommodate minor changes to existing molds and fixtures.

Customization

  1. Small-batch customization is supported. Please contact us to confirm the specifications and order quantity.

Buyer Questions

What adjustments does the ZY169 offer?

The seat offers 220 mm forward and backward adjustment, and the backrest reclines from 90 to 175 degrees.

Does the ZY169 include a seatbelt?

Yes. The recorded configuration includes a black three-point seatbelt.

Key Features

  1. BLACK BEIGE BROWN AND GRAY COLOR
  2. WITH 35MM WIDTH ARMREST ON BOTH SIDES
  3. 220MM FORWARD AND BACKWARD ADJUSTMENT
  4. BACKREST RECLINES FROM 90 TO 175 DEGREES
  5. WITH 3 POINT SEATBELT IN BLACK COLOR
Specifications
Net weight20.6 kg
Single-product gross weight21.6 kg
PackagingPE BAG + CARTON
Appearance / colorBLACK
Products per packaging unit1
Packaging-unit gross weight21.6 kg
Materials / surface treatmentpowder coated steel seat frame
Reference lead time30-45 day after down payment
Packaging-unit dimensions106 × 60 × 28 cm
Minimum order quantity50 PC
CustomizableYes

Final lead time will be confirmed upon order confirmation.

STP & DXF AVAILABLE UPON REQUEST VIA EMAIL

Unit conversions
SpecificationMetric sourceConverted
Net weight20.6 kg≈ 45.42 lb
Single-product gross weight21.6 kg≈ 47.62 lb
Packaging-unit gross weight21.6 kg≈ 47.62 lb
Packaging-unit dimensions106 × 60 × 28 cm≈ 41.73 × 23.62 × 11.02 in

Converted values are approximate.
